A Step-by-Step Guide to Effective Factory Layout Design

Have you ever entered a factory that resembles a maze? Pieces of machinery scattered everywhere, material stacked randomly, workers moving through tight spaces? That’s commotion, precisely what an effective Factory Layout Design is meant to eliminate. The optimal layout turns chaos into order, increasing productivity, safety, and staff morale. In this definitive guide, we’ll go in-depth into successful factory layout design, step-by-step, with practical advice that will make your workspace 2025 and beyond-ready.

1. What is Effective Factory Layout Design?

Effective Factory layout design is the systematic planning and organization of machinery, equipment, and workstations in a manufacturing plant. It is meant to optimize production operations, optimize the use of resources, and provide effective flow from raw material to product.

Why is it important? Because effective factory layout design will have a direct effect on the efficiency of operations, cost management, product quality, and employee morale.

  • Reduce material handling and movement

  • Optimize utilization of equipment

  • Provide safety and ergonomic guidelines

  • Maximize use of space

  • Make room more flexible for future expansion or modification

2. Factory Layout Types

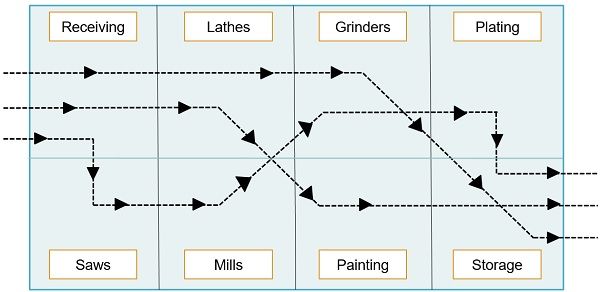

Another name for a functional layout is a process layout, where the same machines or operations are placed together in departments or work sections. For example, all the drilling machines may be in one location, and all of the paint booths are in another. This is a layout that is especially adapted for custom manufacturing or small batch production where the products are highly variable.

Nevertheless, since materials need to be transported from one section to another for every step, it can result in higher material handling and longer production times. Despite this, process layouts are highly flexible when it comes to dealing with varying products and also permit simple changes for new or different processes.

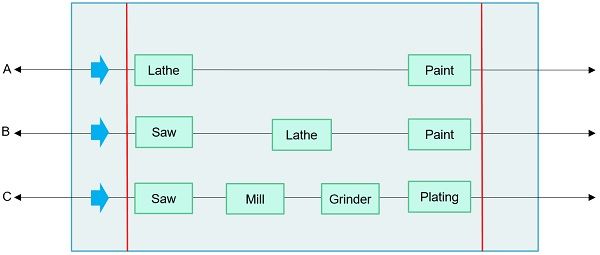

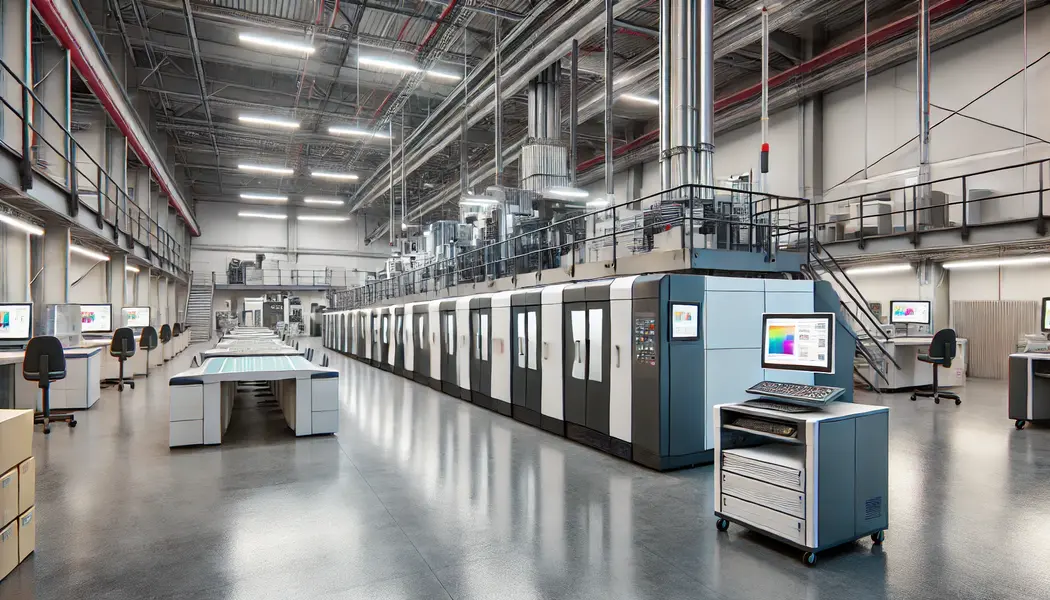

The product arrangement, sometimes referred to as a line arrangement, has equipment and workstations lined up one after the other, performing the same steps required to produce a given product. It is ideal for repetitive jobs or mass production, like automotive assembly lines. Because the workflow is linear and continuous, it reduces material handling and waiting time between the processes.

But this arrangement is less versatile since it's organized around a single product or a narrow range of products. Any modification in product design tends to cause serious reorganization of the effective factory layout design.

The cellular layout is a mixed strategy featuring characteristics of process and product layouts. Workstations and machines are organized into cells each for processing a group of similar products or parts. This arrangement enables smoother material flow through cells and lowers travel distance than process layouts.

Cellular layouts enhance effectiveness by promoting teamwork and allowing rapid changeovers, making them ideal for medium volume and variety production. They also increase flexibility while retaining some of the streamlined advantages of product layouts.

Fixed layouts are applied when the product is so massive or cumbersome to relocate during production, like ships, aircraft, or huge construction projects. Rather than relocating the product, laborers, equipment, and tools go to the site of the product to conduct different tasks. The layout necessitates cautionary coordination of resources and labor because all activities take place in a single location. Though it provides flexibility and facilitates the handling of bulky products, it can cause congestion and scheduling issues if not effectively controlled.

3. Advantages of Effective Factory Layout Design

An effective factory layout design facilitates effortless, logical workflows, parts and materials flow constantly from process to process without any wastage of time. This minimizes downtime, shortens production cycles, and even increases overall throughput, so you can make more in less time.

An effective factory layout design ensures the separation of work areas, maintains clear aisles, and labels risk areas where required. This prevents accidents, injuries, and near-misses and makes the working conditions safer for everyone.

By reducing excessive handling and unnecessary routing, you save labor and minimize the risk of product damage or error. It results in major cost savings over time and more environmentally friendly operations.

Clean, organized, and consciously planned workstations enable employees to control their work and reduce stress and physical hardship leading to enhanced morale.

This equates to greater concentration, less exhaustion, and greater job satisfaction, all of which increase productivity.

4. Effective Factory Layout Design Challenges

Effective factory layout design is not without challenges. It is akin to solving a puzzle whose pieces space, equipment, workflow, and personnel have to fit perfectly together.

Most factories have fixed building dimensions, and fitting in new storage or equipment can be difficult without disrupting workflow or safety.

Fire safety, exits, ventilation, and ergonomic configurations need to be integrated into the layout initially, otherwise, the redesign will be expensive or penalties will have to be paid later.

Not all companies can invest in a complete overhaul or sophisticated automation, and hence cost-effective factory layout design becomes all the more important, particularly for SMEs and medium-scale operations.

People accustomed to a particular arrangement might find new procedures awkward or cumbersome. This can be overcome with open communication, training, and possibly, a cultural realignment to ongoing improvement.

Even with these challenges, strategic effective factory layout design grounded in data, teamwork, and phased implementation can overcome most of these challenges and achieve long-term operational excellence.

5. Step 1: Understand Your Production Process

To make an effective factory layout design:

  • Begin by recording each step in your manufacturing process from unloading raw materials off the dock to delivering finished goods out the door.

  • Identify bottlenecks by asking the questions such as- are materials idling too long? Are employees going backward to access tools or materials? Are several departments waiting on the same resource?

  • Visualize which layout features should be near each other, which activities require more room, and where automation or streamlining could make a large impact.

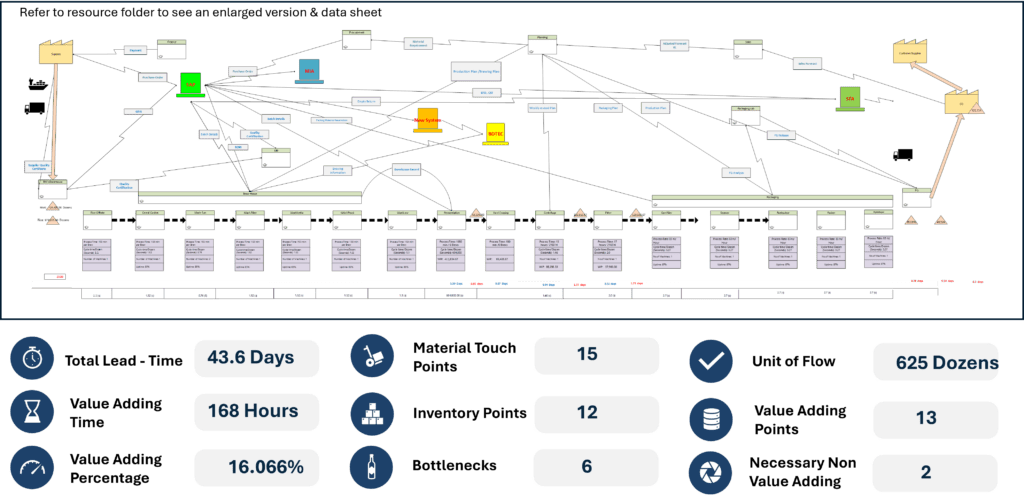

  • Value Stream Mapping (VSM) is a powerful lean manufacturing technique that maps out the flow of materials and information through your whole process.

  • It enables you to view where value is being added and where it isn't, which is essential for effective factory layout design.

  • VSM assists in revealing concealed types of waste, such as excessive inventory, waiting time, over-processing, or even unnecessary movement.

  • VSM measure delays and inefficiencies. With that knowledge, you can easily make an effective factory layout design that centers on the elimination of the sources of waste and non-value-adding effort.

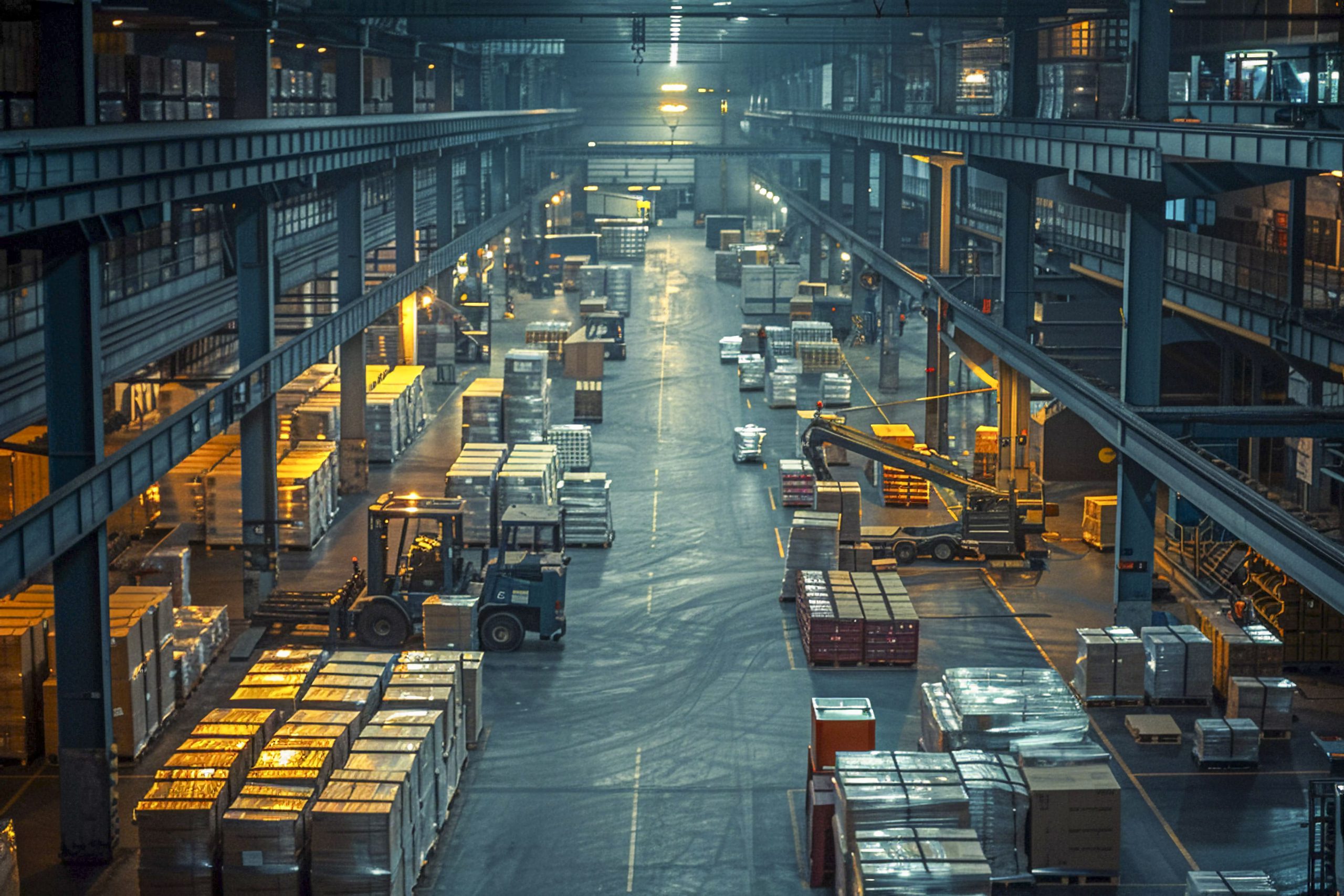

6. Step 2: Analyze Space Requirements

  • An effective factory layout design must provide free and easy flow of materials across the facility.

  • Start by taking an estimate of space that raw materials awaiting entry, work-in-progress (WIP) stock, and goods awaiting dispatch will occupy.

  • Identify appropriate equipment to move materials. These too will have its own space and turning radius needs.

  • Think about in-transit holding spaces, material may queue between stages or through quality inspection.

  • Providing too little space for these intermediate phases can cause piling, mess, or production line interference.

    • While defining space for machines, allow room for operator movement, maintenance access, and safe clearance areas.

    • If necessary, also consider other requirements such as overhead ventilation, under-floor pits, or sound insulation, which increases their space needs.

    • Remember service access paths for technicians, tool stations, and periodic disassembly or upgrades.

    All these things contributes to effective factory layout design.

7. Step 3: Choose the Right Layout Type

  • The first consideration is your production volume and product variety.

  • If your operations are centered on high-volume, low-variety products, a product layout (or line layout) is usually optimal.

  • If you manufacture low-volume, high-variety items, such as custom machinery or medical equipment, a process layout can be better.

  • For those producers dealing with families of related parts, a cellular layout melds the benefits of product and process layouts.

  • Markets today shift rapidly, and so should your layout. Planning with flexibility in mind is leaving space for modular equipment, movable workstations, and expandable storage.

  • It's also future-proofing, not only thinking about what you need right now, but what your production will be like 2, 5, or even 10 years from now.

  • A fixed arrangement may be effective now but may end up costing you a lot in downtime, missed opportunities, and re-layout costs tomorrow.

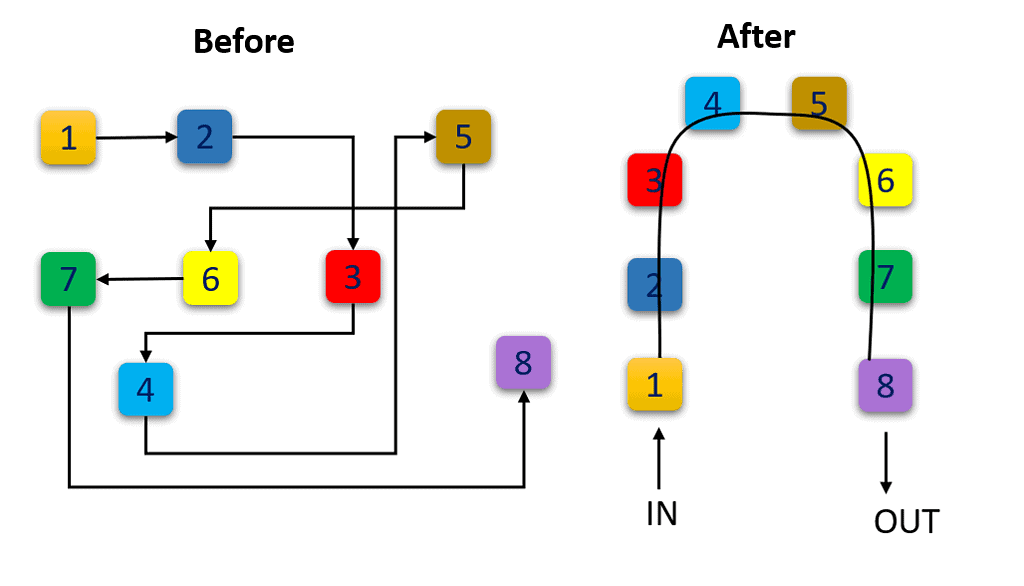

8. Step 4: Plan Material Flow

  • The effective factory layout design aims to minimize material handling by designing short, direct routes that mirror the natural production sequence. The more linear the flow, the better.

  • Organize departments or processes in a sequential sense to prevent going the wrong way.

  • Focus on reducing touch points. The fewer handovers, the fewer opportunities for mistakes, damage, or confusion.

  • Cross-traffic, where various streams of materials, equipment, or even people intersect, is a recipe for chaos and confusion. Congestion, delays, and accidents can result.

  • Your configuration must have separate paths for raw materials coming in, WIP goods and finished products going out.

  • Establish one-way flow paths and designated traffic paths. Utilize signs, floor stripes, and even sensors to direct traffic.

  • If your operation utilizes AGVs or conveyors, route planning is even more necessary to prevent bottlenecks.

9. Step 5: Effective Factory Layout Design for Safety and Accessibility

  • The pathways should facilitate easy movement. Properly marked layout ensures that there are no collisions among workers, equipment, and material handling equipment.

  • Emergency doors should be clearly visible, well-marked, and fast to reach from any corner of the floor.

  • Position emergency signs properly and avoid them being blocked by shelving, racks, or machines.

  • Position fire extinguishers, alarms, and first aid points in accessible locations and perform routine safety drills so that each team member is familiar with the way out.

  • Keep the routes separate for raw materials coming in, work-in-progress goods, and finished goods going out.

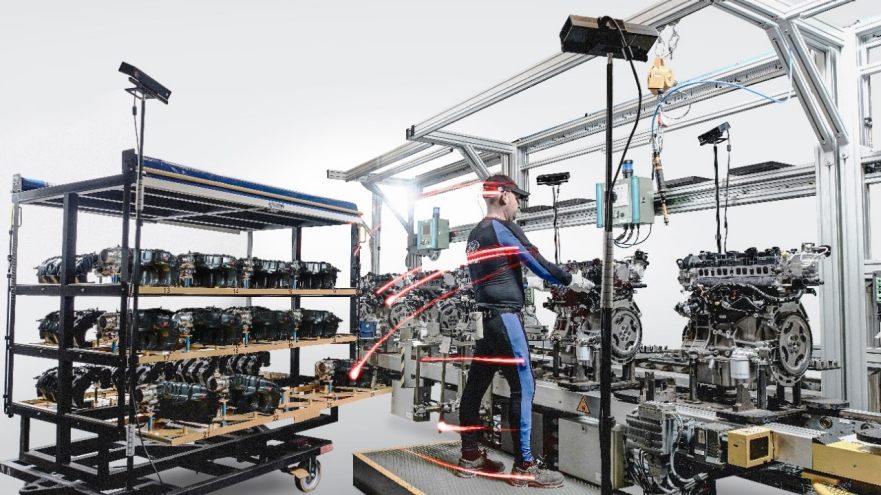

  • Ergonomics in effective factory layout design entails placing workstations and equipment to suit the natural movement of the human body.

  • Place tools most often used within reach of your arms. Vary table heights to prevent slouching.

  • Minimize the necessity for unnecessary walking between tasks by clustering related tasks together.

10. Step 6: Incorporate Technology and Automation

  • Adoption of advanced tools and technologies is essential for effective factory layout design.

  • Integrate sensors and automation onto the factory floor, to receive real-time insight into material flow, machine health, and throughput.

  • It allows real-time adjustment of production calendars, predictive maintenance, and quick response to changes in demand, all while the process continues unabated.

  • The Internet of Things (IoT) is transforming the way factories work. When your machines "converse" with one another, and with you, the outcome is unprecedented visibility and command.

  • IoT-powered equipment can give real-time feedback on temperature, vibration, usage time, and wear.

  • Wearables for the workers can track exposure to the environment, fatigue, or proximity to danger zones.

  • These devices not only enhance worker safety but also assist in highlighting issues before they become downtime or accidents.

11. Step 7: Test and Refine the Layout

  • Use simulation software and digital twin capabilities to model your suggested layout in a virtual space.

  • Simulation software enables you to map workflows visually, trace movement routes, and forecast bottlenecks or inefficiencies that might arise.

  • Operators, supervisors, and maintenance personnel normally possess extensive real-world experience with what works and what doesn't.

  • Bringing them in during testing guarantees that you identify those issues everyone misses, optimize layout usability, and encourage a sense of ownership.

  • Their initial input can result in more intelligent decisions, easier implementation, and better alignment between teams.

12. Avoidable Mistakes to Avoid When Designing Factory Layout

Effective factory layout design is a sensitive operation of balancing various competing considerations. The majority of organizations make avoidable errors that may lead to inefficiency, cost, and safety risks. The following are some of the most avoidable mistakes to avoid:

  • Overlooking future expansion requirements
  • Poor material flow planning
  • Disregarding safety and ergonomic standards
  • Forgetting to test layouts before complete implementation

Future Trends for Effective Factory Layout Design

With evolving industries come changing methods of effective factory layout design. The future of factory design is dominated by the dictates of flexibility, adaptability and sustainability. Let’s go through some of the distinguished trends that are transforming factory planning and operations.

  • Sustainable and Green Layouts – Sustainability is not simply a choice anymore. However, it has become a business necessity.
  • Adaptive Layouts for Rapid Change – In the present scenario of a high-speed economy, flexibility is very much needed.
  • In conclusion, an effective factory layout design isn’t simply a technical challenge but it’s a strategic choice that can make or even break your manufacturing success. You need to understand your processes, plan well, and leverage technology that’s beneficial for you. Also, you will convert disorder into order, which boosts efficiency, safety, and profitability. This is an ongoing process, test, tweak, and tinker frequently for optimal gains.

Production Modeling India (PMI) is a promising name in the field of industrial engineering with excellent track record in optimizing factory layouts to make them effective. Explore our industrial engineering services to know more.
